Substrate

NCT’s β-Ga2O3 single crystal substrates are designed for research use.
Available in multiple orientations: (001) in 2-inch, 100 mm, and 150 mm; (010) and (011) in 10×15 mm2; (-201) in 2-inch; and (100) in small piece size. Sn-doped, undoped, and Fe-doped options are available depending on orientation.



＞＞Download PDF
* Specifications for miscut Sn-doped (100), and miscut Fe-doped (100) substrates will be released once the sales launch schedule is finalized.

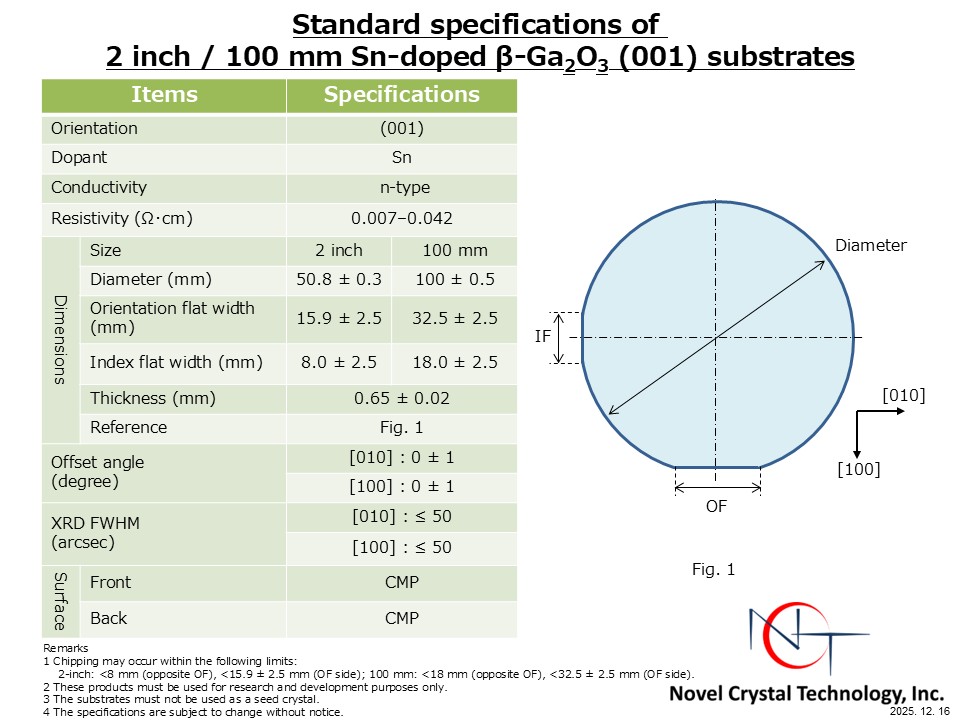

2-inch / 100 mm β-Ga2O3 (001) substrates
Ga2O3Subs(001)

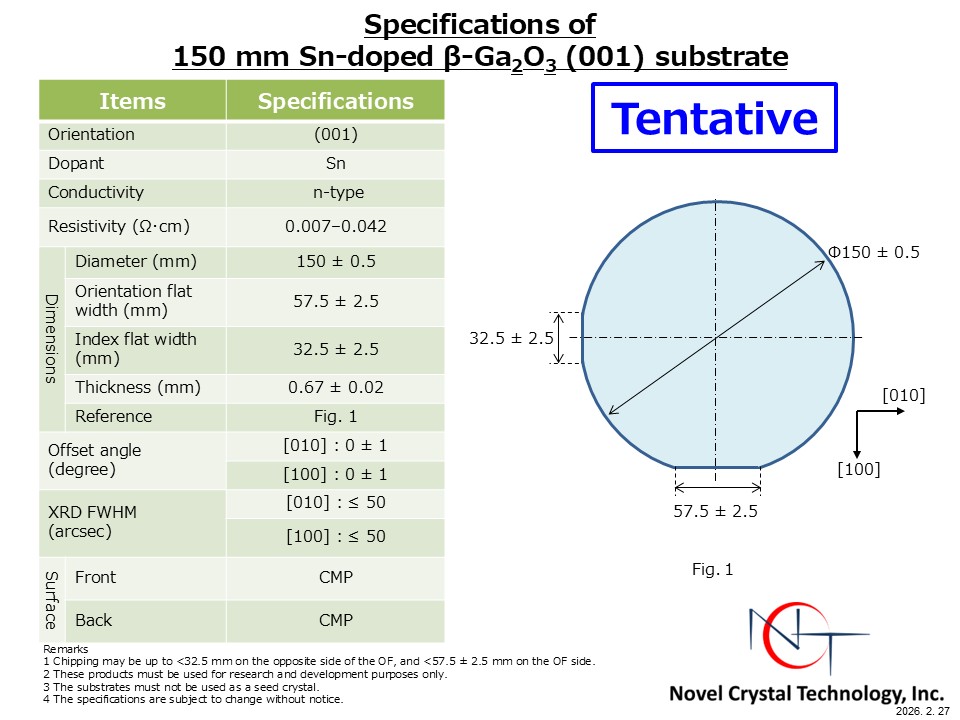

150 mm β-Ga2O3 (001) substrate
Ga2O3Subs(001)

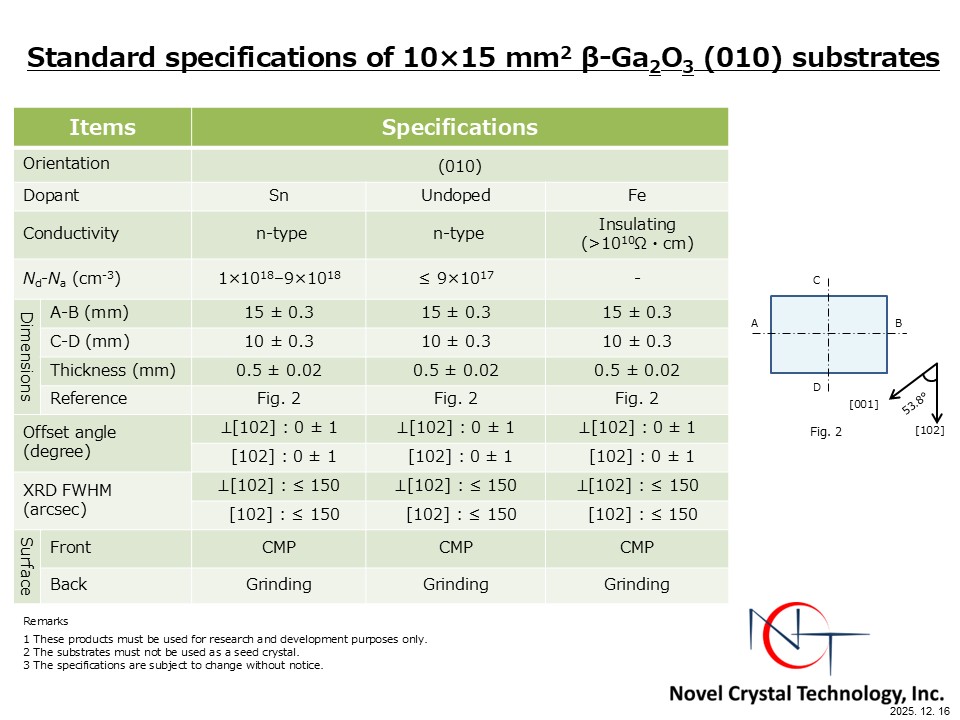

10×15 mm2 β-Ga2O3 (010) substrates
Ga2O3Subs(010)

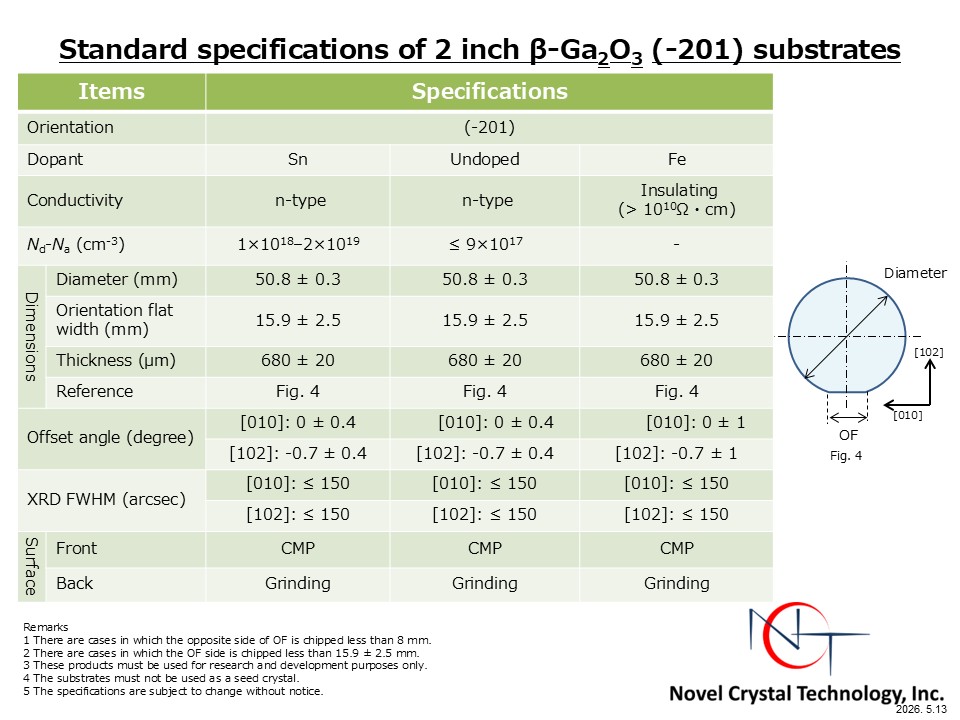

2-inch β-Ga2O3 (-201) substrates
Ga2O3Subs(-201)

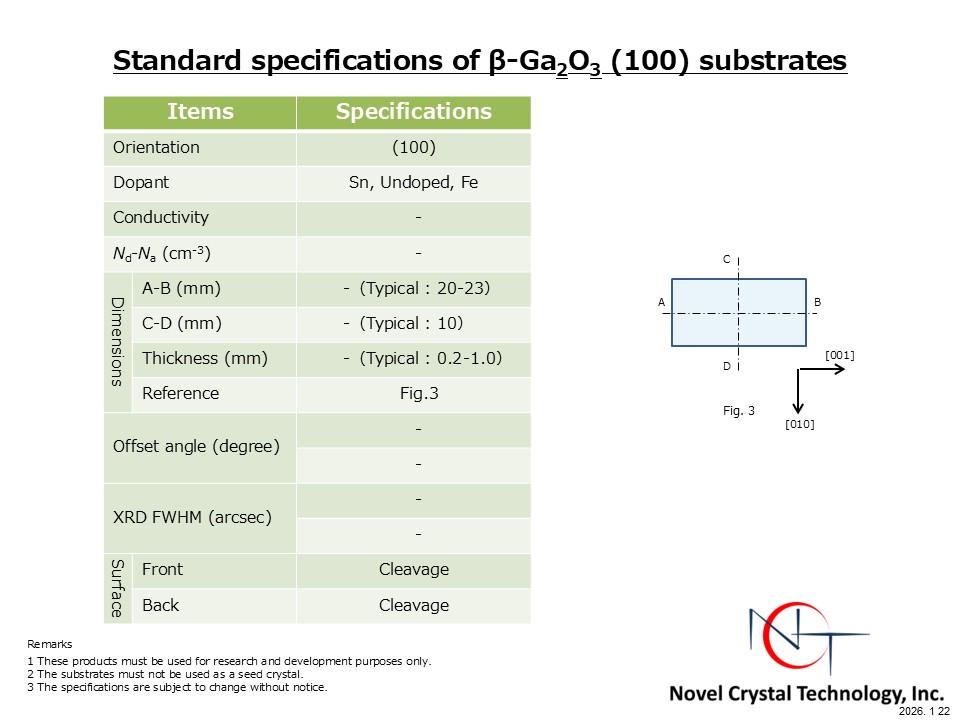

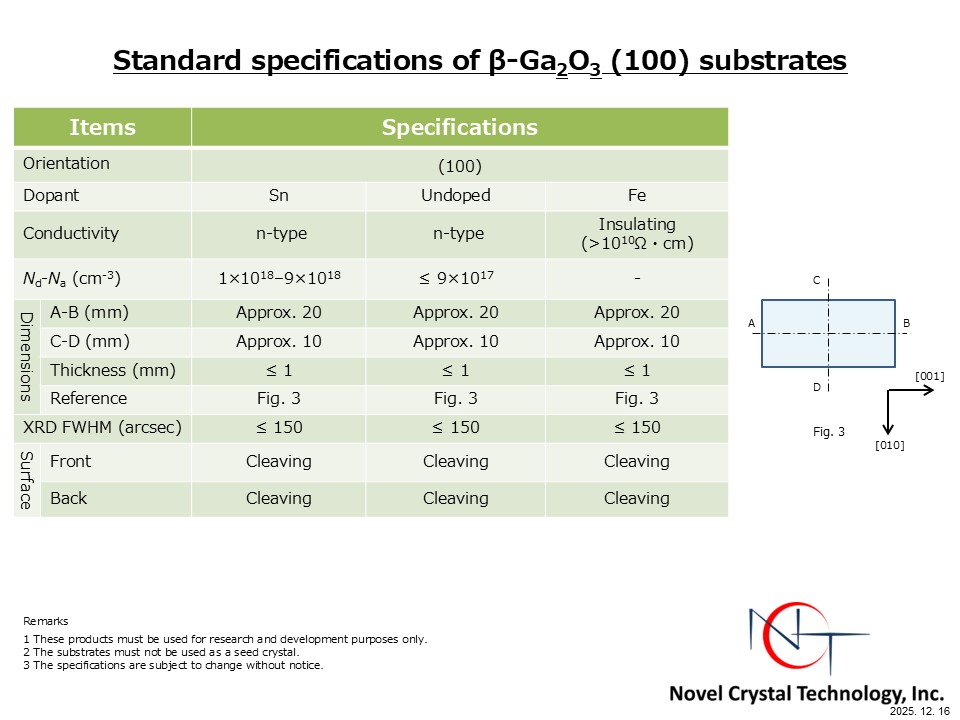

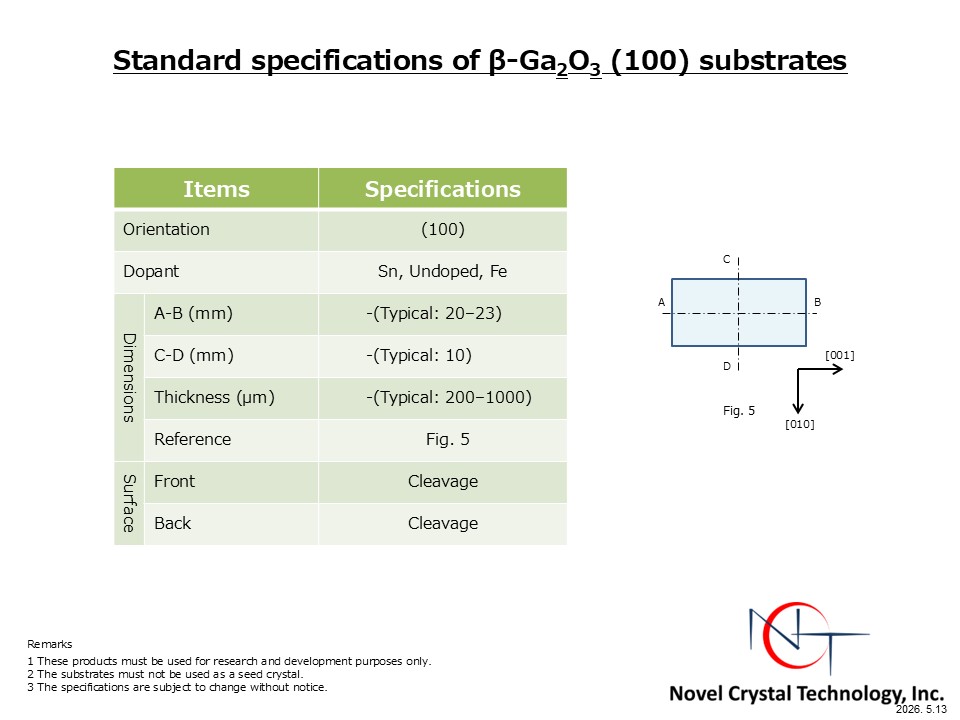

β-Ga2O3 (100) substrates
Ga2O3Subs(100)

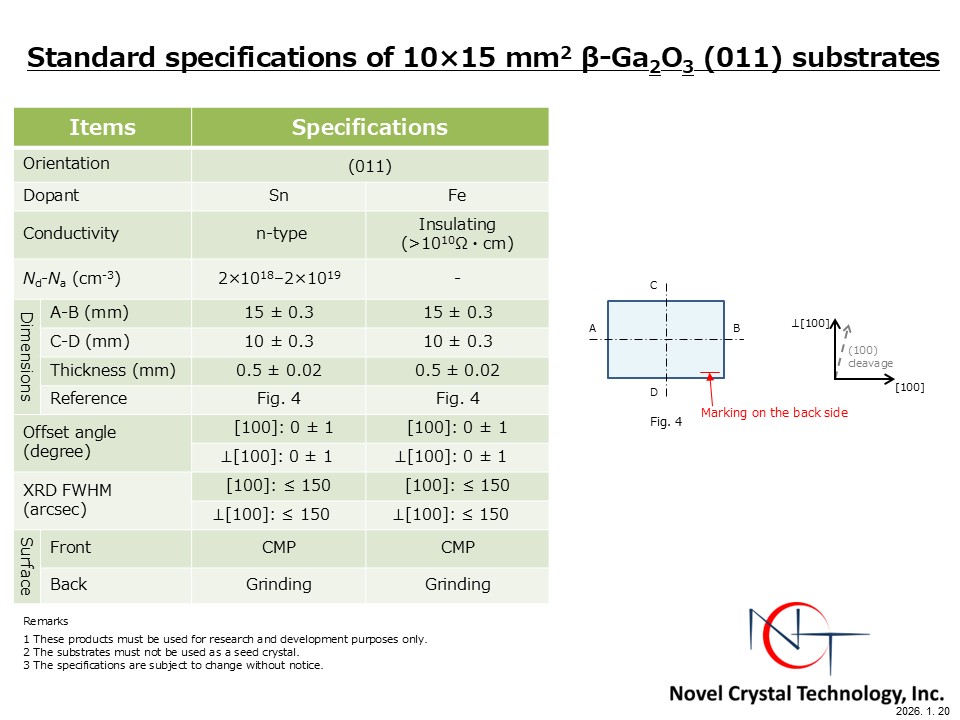

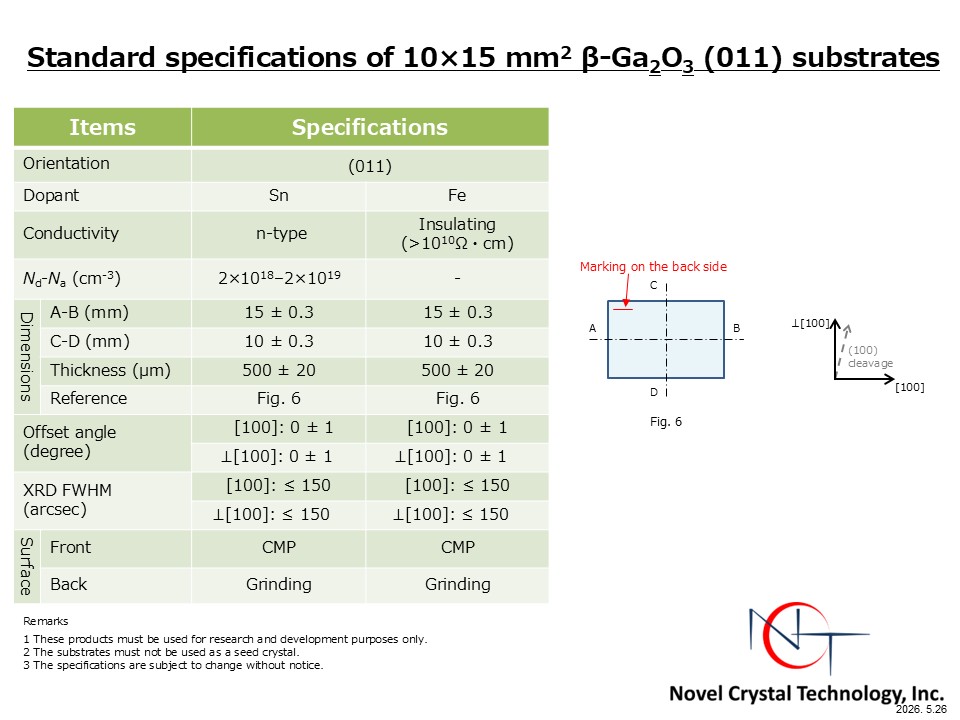

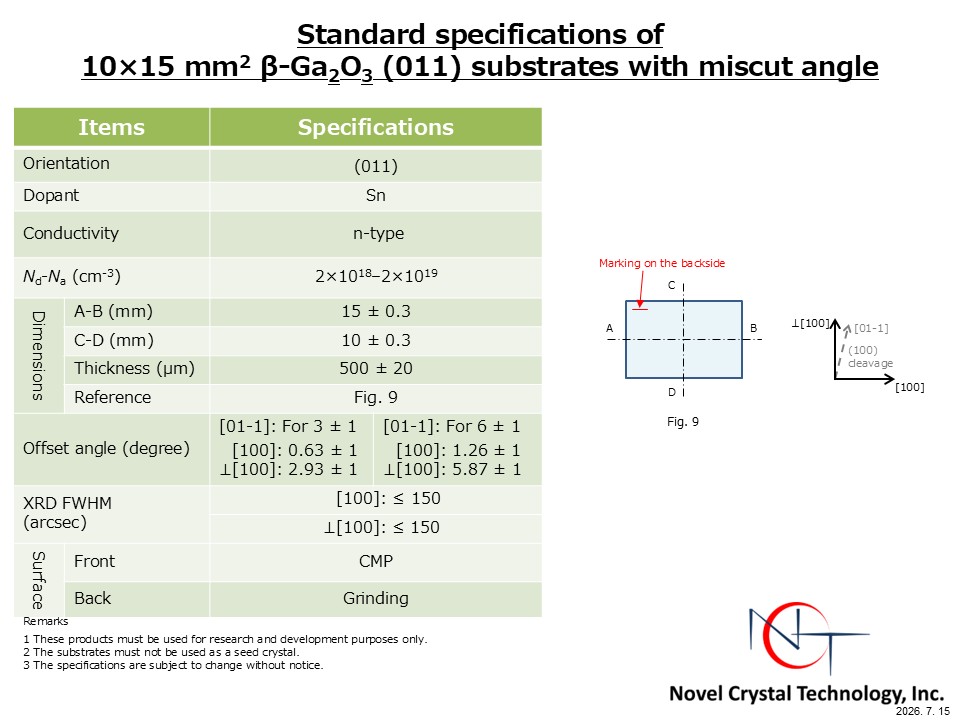

10×15 mm2 β-Ga2O3 (011) substrates
