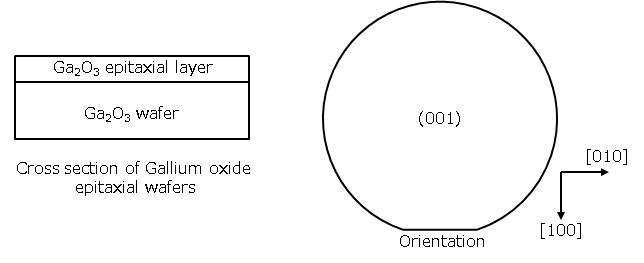

Standard specifications of Φ2 inch HVPE gallium oxide epitaxial wafers
Epitaxial layer (Growth method: HVPE)
| Epitaxial layer | Specification |
|---|---|
| Dopant | Si(n-type) |
| Doping concentration | Specify a value in the range between 2x1016 and 9x1016 cm-3 |
| Thickness | Specify a value in the range between 5 and 10 μm |
Wafer
| Property | Specification |
|---|---|
| Dopant | Sn (n-type) |
| Doping concentration | 1-9x1018 cm-3 |
| Orientation | (001) |
| Size | Φ2 inch |
| Thickness | 0.65 mm |
| XRD FWHM | ≦350 arcsec |
| Off set angle | 0°±1° |
Remarks
1 These products must be used for research and development purposes only.
2 The substrates must not be used as a seed crystal.
3 The specifications are subject to change without notice.
